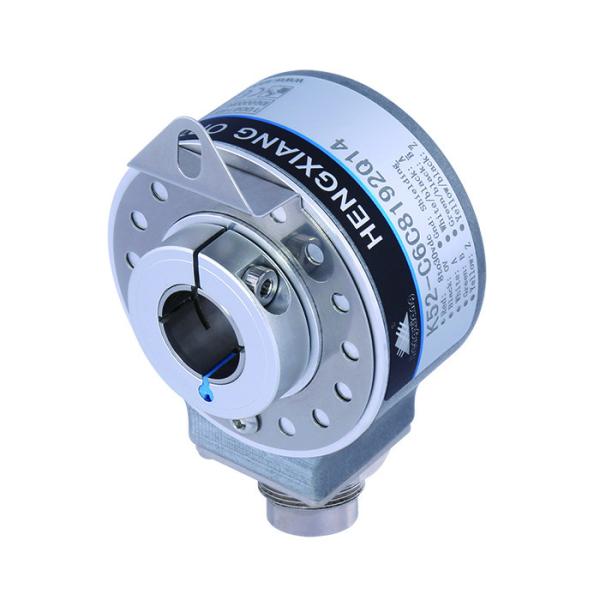

3 Phase Blind Hollow Shaft Incremental Encoder With Blind Hole

K52 ABZ 3Phase blind hollow Shaft Encoder Incremental Encoder for Office for Automation

Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Some Part No. for K52 Series

K52-T12C8192B15

K52-T6E10000B14

K52-C3V5000B10

K52-C2F4096B8

K52-TE1N3600Q14

K52-TE121024/4B10

K52-T6E1440Q12

K52-C4C1250Q10

K52-TE3F1200Q8

K52-T2N1024Q14

K52-TE1F1000B15

K52 series encoder Characteristics

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	51mm
Thickness	39mm
Installation dimension	R27.5mm(spring plate 50T55)
Hollow shaft type	through hole or blind hole
Hollow shaft diameter	8mm,10mm,12mm;14mm;15mm
Resolution	1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
	4096;5000;5760;8192;10000；11520；16384；20000；23040
	1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
	2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Consumption current	100mA MAX
Top response frequency	300KHZ
Cable length	1000mm(cable with shielding)
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Certification	CE

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

Advantage of “HENGXIANG” encoder factory

Over 18 years encoder production experience
More than 20 years experienced engineers
Professional working team
High quality standard
Quick Response time
Utility Model Patent Certificate
Own brand and unique brand
CE certification for all models
Prompt delivery date
100% full inspection before shipment
