Robotic Part Optical Rotary Encoders Cnc Automation UVW Signal Servo Motor

Ask Lasest Price
Brand Name :	HENGXIANG
Model Number :	KN35
Certification :	CE,ISO9001
Price :	negotiable
Payment Terms :	D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :	100K pieces per year
Delivery Time :	3-5 working days for sample order, 7-15 working days for mass order

Add to Cart

Product Details
Company Profile

Robotic Part Optical Rotary Encoders Cnc Automation UVW Signal Servo Motor

Robotic Part Optical Rotary Encoders Cnc Automation UVW Signal Servo Motor

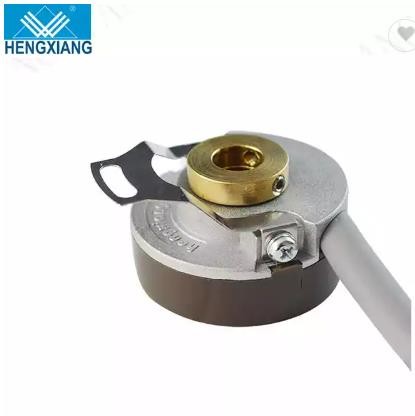

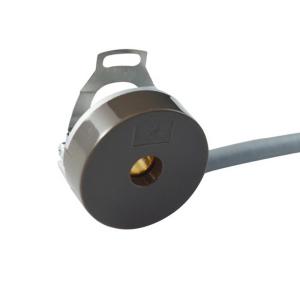

1. Feature: Through/Blind/Taper shaft incremental encoder.

2. Application: Servo motor, CNC and other industrial automations.

3. Important parameters: UVW signal encoder, Ultra-thin, pole encoder.

Basic Paramenters:

Items	Basic parameters
Encoder type	Incremental encoder
Brand	HENGXIANG
External diameter	35mm
Thickness	18mm
Installation dimension	R13.5mm, R14.5mm, R20mm
Hollow shaft type	blind hole; through hole, taper hole
Hollow shaft diameter	6mm,7mm;8mm;10mm
Resolution	1024;2048;2500;3600;5000;7200;10000;14400
Resolution	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6； 2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlettype	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP40
Cable length	500mm
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 5.9x 10-3 N.m
Intertia moment	less than 1.5x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Slew speed	5000RPM
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+100°C；storage:-25 ～+100°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material	Dia cast aluminium
Certification	CE
package	Carton box
Net weight	About 80g (with package)

Products Description

Model Selection Guide

Manufacturing Dimensions

Product Usage

About Factory

FAQ:

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?

A: HENGXIANG

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.

Matters needing attention:

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
