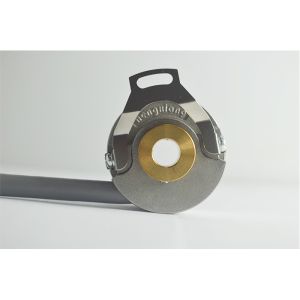

KN35 Robotic Part Ultra Thin Incremental Encoder Cnc Automation UVW Signal

Ask Lasest Price
Brand Name :	HENGXIANG
Model Number :	KN35
Certification :	CE,ISO9001
Price :	negotiable
Payment Terms :	D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :	100K pieces per year
Delivery Time :	3-5 working days for sample order, 7-15 working days for mass order

Add to Cart

Product Details
Company Profile

KN35 Robotic Part Ultra Thin Incremental Encoder Cnc Automation UVW Signal

KN35 robotic part cnc 2022 automation and control services ultra-thin encoder decoder

1. Feature: KN35 Through/Blind/Taper shaft incremental encoder.

2. Application: Servo Motor, CNC and other industrial automation field.

3. Important parameter: UVW signal encoder, Ultra-thin, pole encoder.

Basic Paramenters

Items	Basic parameters
Encoder type	Incremental encoder
Brand	HENGXIANG
External diameter	35mm
Thickness	18mm
Installation dimension	R13.5mm, R14.5mm, R20mm
Hollow shaft type	blind hole; through hole, taper hole
Hollow shaft diameter	6mm,7mm;8mm;10mm
Resolution	1024;2048;2500;3600;5000;7200;10000;14400
Resolution	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6； 2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlettype	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP40
Cable length	500mm
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 5.9x 10-3 N.m
Intertia moment	less than 1.5x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Slew speed	5000RPM
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+100°C；storage:-25 ～+100°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material	Dia cast aluminium
Certification	CE
package	Carton box
Net weight	About 80g (with package)

We mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
