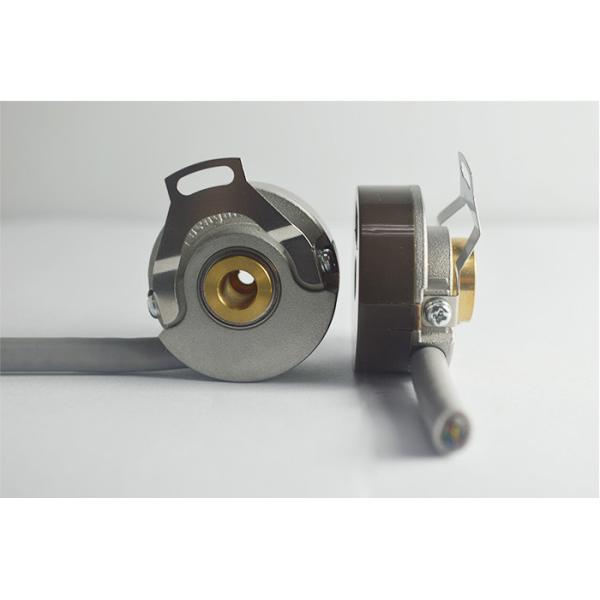

Hollow shaft through hole encoder KN35 encoder 14400 resolution OC
output dc8-30v
Product Description
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Product Description
| Items | Basic parameters |
| Encoder type | Incremental encoder |
| Hollow shaft diameter | 6mm,7mm;8mm;10mm |
| Resolution | 1024;2048;2500;3600;5000;7200;10000;14400 |
| 1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8 |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Outlet type | Cable out from side |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output |
| Push-pull output |
| line drive (26LS31) TTL |
| line drive(DC8-30V) HTL |
| TTL(DC5V) phase ABZ are back of phase UVW |
| Protection grade | IP40 |
| Cable length | 500mm |
| Consumption current | 100mA MAX |
| Load Voltage | ≤DC30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| Shell Material | die cast aluminum |
| Certification | CE |
Notice for encoder installation
1. Please read the encoder specification carefully before
installation
2. Encoder is belong to precision instrument, so we should avoid
shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range,
or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft,
please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid
electromagnetism interference of alternating current, cables of
encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the
specified color in catalogue, or encoder interior circuit may be
destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil,
water, higher (lower) temperature and caustic or flammable material
during working.
8. The encoder cable signal can’t be drew or bent forcibly.
Few Questions you may like to know before ordering
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check
freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and
parameters, you could contact us for technical support if you have
any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your
doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western
Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
KN35 encoder model number for reference
KN35-J2F1024B6
KN35-J2P1200B8
KN35-J3VL2048Q6
KN35-J4E2500Q8
KN35-J6C3600Z7
KN35-J12C1000/4Q6 DC5V
KN35-J2V14400Q8
KN35-J3FH10000B6
KN35-J4C7200B8
KN35-J6E5000Z7 DC8-30V
