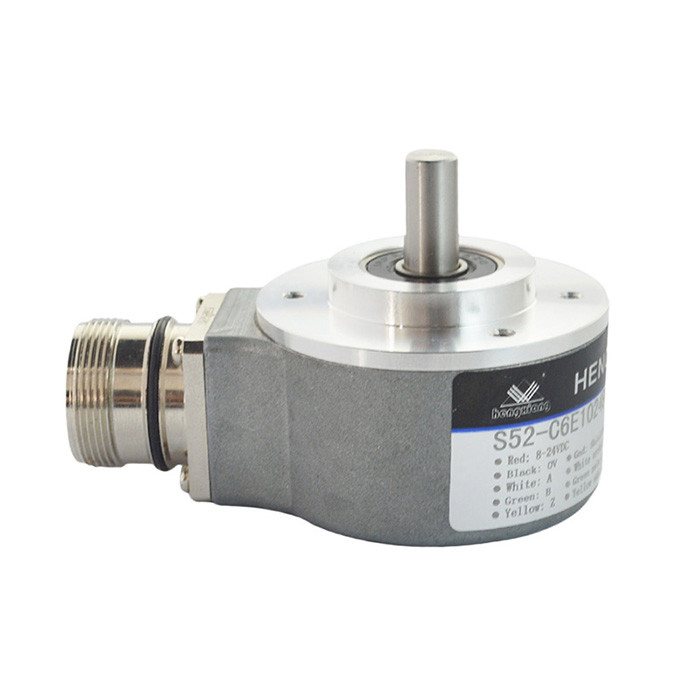

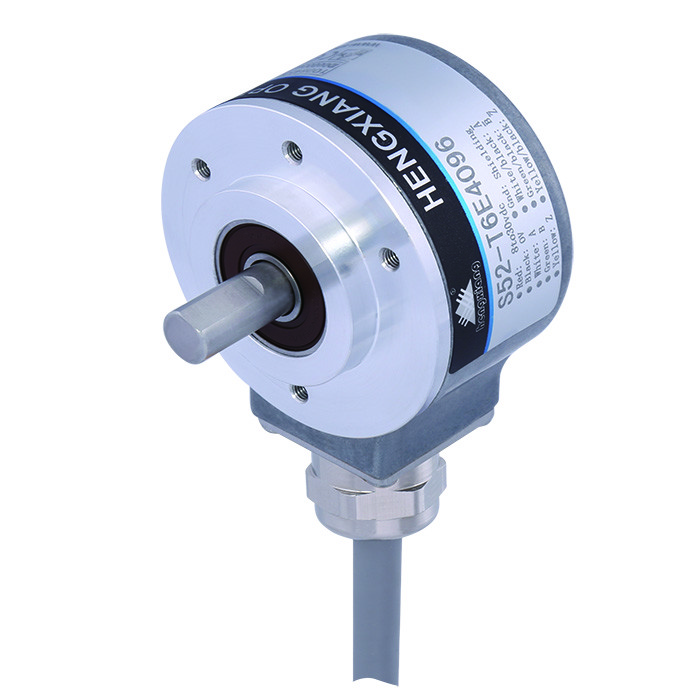

Solid shaft heavy duty encoder S52 rotary encoder ABZUVW phase
2048ppr 4 poles IP66
Product Description
Simple introduction for S52 rotary encoder
Encoder type: Incremental encoder
External diameter: 51mm
Brand: HENGXIANG
Installation dimension: diameter 40mm
Solid Shaft diameter: 8mm(D shape)
Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage: DC5V ; DC8-30V
Consumption current: 100mA MAX
Top response frequency: 300KHZ
S52 series encoder Characteristics
| Product Name | S52 heavy duty encoder external diameter 51mm solid shaft 8mm HTL output customizable |
Brand | HENGXIANG |
Items | Basic parameters |
Resolution | 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600; 4096;5000;5760;8192;10000；11520；16384；20000；23040 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6; 2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8 |
Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
Supply voltage | DC5V ; DC8-30V |
Outlet type | Cable out from back |
| Socket out from back |
| Cable out from back with socket |
Output mode | NPN&PNP |
| Voltage output |
| Push-pull output |
| Difference output(TTL,HTL,RS422) |
Consumption current | 100mA MAX |
Shaft Material | Stainless steel |
Shell Material | die cast aluminum |
Cable length | 1000mm(cable with shielding) |
Protection grade | IP50 ; IP65 |
Cable length | 1M (cable length could be added appropriately by require, but it
need payment individually)
|
Signal Circuit of encoder
1. The NPN Open Collector -- The NPN Open Collector(NPN) is an
interface based on an output circuit with an NPN transistor.
An open collector is the unconnected collector connection of an NPN
transistor, whose emitter is connected to earth and whose collector
is connected to the output.
2. PNP output
The PNP output is an interface based on an output circuit with a
PNP transistor.
3. Push-Pull output(HTL)
High Voltage Transistor Logic functions with a voltage supply in
the range 10 and 30 V DC, with 24 V DC being the most usual.
“Low” is defined as an output of between 0 V and 3 V and “high” as
between VCC and VCC - 3.5 V.
4. TTL RS-422 output
In a transistor-transistor logic (TTL), both the logical status and
the amplification are done by transistors, hence the name.
The TTL output is supplied with either a fixed 5 V voltage or a
variable voltage of between 10 and 32 V. For this the low range is
defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.
Production video
There are plenty of encoder video if you still have any doubts on
encoder, please email us directly or contact online service right
now.
At the same time, you could also visit our YOUTUBY page easily.
Most of the encoder series have videos for reference.
Applications
- · Petrochemical industry
- · Pharmaceutical industry
- · Food industry
- · Aviation and aerospace industry
- · Stepper motor
- · Servo motion controller
- · Gearbox
- · DC garage door motor
- · DC servo motor
- · Stock driver
- · PMDC geared motor
- · Brushless dc motor
Matters needing attention
- Must choose the power supply voltage: DC5V or DC8-30V
- Must choose leaf spring plate model number if you select hollow
shaft encoder
- Please advise the motor speed (RPM) that you actually use
- If you have any other requirements, please provide detail
parameters
