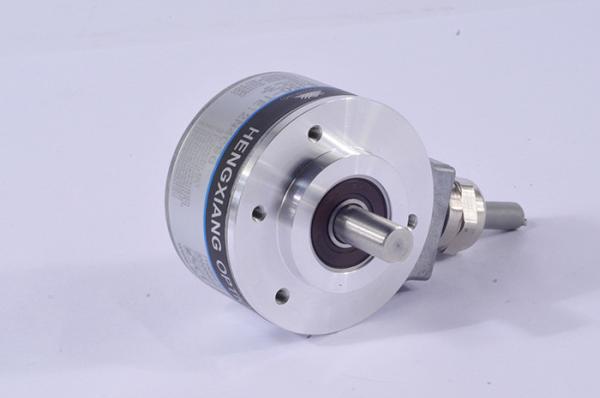

Absolute optical rotary encoder SJ50 series encoder parallel output 256ppr 8 bit CCW

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

SJ50 series encoder Specification

Our Service

• Quick response once received customer’s quotation query
• Professional engineer team, to solve your problems at any time
• Strictly inspection before shipment
• Various encoder models to be selected
• Short lead time
• High quality standard

Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.

About Absolute encoder

Absolute encoders have an encoder disc (sporting marks or slots) on a power-transmission shaft and a stationary pickup, but the disc marks output a unique code for each shaft position. Absolute encoders are either single-turn or multi turn encoders. Single turn absolute encoders can verify position within a single turn of the encoder shaft. This makes them useful for short travel situations. In contrast, multiple-turn absolute encoders are better for more complex or longer positioning situations.

Engineers generally classify absolute encoders by the number of their output bits, which correlates to the number of the disc’s tracks—and the maximum rotary angle the encoder registers. More after the jump.

Absolute rotary encoders have the advantage of non-volatile memory. That is, they do not lose track of positioning even when power fails. So even if something moves the machine shaft when power is off, an absolute encoder keeps track of the rotary-position change when the machine powers on again. Usually, electronics store this information as binary code, ideally Gray binary code. Absolute rotary encoders can operate point-to-point as well. They are useful in situations where safety is a concern, because they position whenever machines power on. Immunity to electoral noise is another benefit. One caveat: absolute rotary encoders are generally more expensive than incremental encoders. However, the cost of absolute encoders has steadily decreased over the last decade, and that’s driven steady increase of their use.

Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise, specializing in the creation, research, production, and marketing of high-precision optical encoders.

We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products.

We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation.

We mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
